Energy Converters
Railway-grade conversion, monitoring and rectification for demanding environments.
Railway
DC-DC Railway Voltage Converters
- Designed to meet IEC571, EN50155, RIA12
- Standard railway voltage inputs: 24V, 36V, 48V, 72V, 96V, 110V
- Standard voltage outputs: 5V, 12V, 24V, 36V, 48V, 72V, 96V, 110V, 120V
- Wide range of power output: 30W, 50W, 120W, 300W, 500W
- Some models include extra current-stabilised (1–20mA) pre-set outputs to drive 20mA-loop devices
- Multiple protections against input transients, including active circuit protection
Monitoring

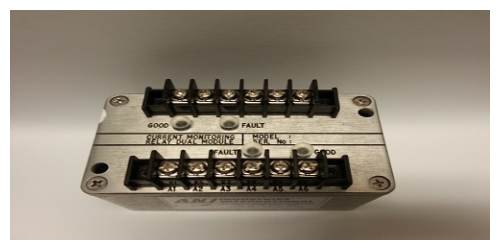

Current & Voltage Monitor Relays
- Designed to meet IEC571, EN50155, RIA12
- Monitors AC and DC currents
- 5mA to 10A RMS measurement range
- 2 independent current sensor inputs
- 2 independent changeover (NO and NC) 1A rated relay outputs
- 2 independent voltage supply inputs
- Extra-wide supply voltage range: 9–125 Vdc or 6.3–88 Vac rms
- Transient protected
- Latched and non-latched operation
- Operation on both upward and downward thresholds
Power
Request specifications

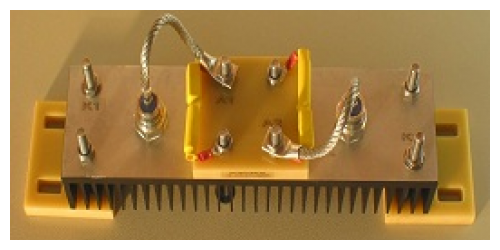

Power Rectifier Assemblies
Robust power rectifier diode assemblies for reliable operation. The following standard assemblies are available:
| Rectifier Diode Assembly | Temperature Rise Over Ambient |
|---|---|
| ANJ-SKNA4/17-ASM | 38.5 degC at 3.7A Max |
| ANJ-SKNA20/17-ASM | 53 degC at 15A Max |
| ANJ-SKR130/16-ASM60S | 49 degC at 60A Max |
| ANJ-SKR130/16-ASM60D | 49 degC at 60 Max each diode |
